Hardware

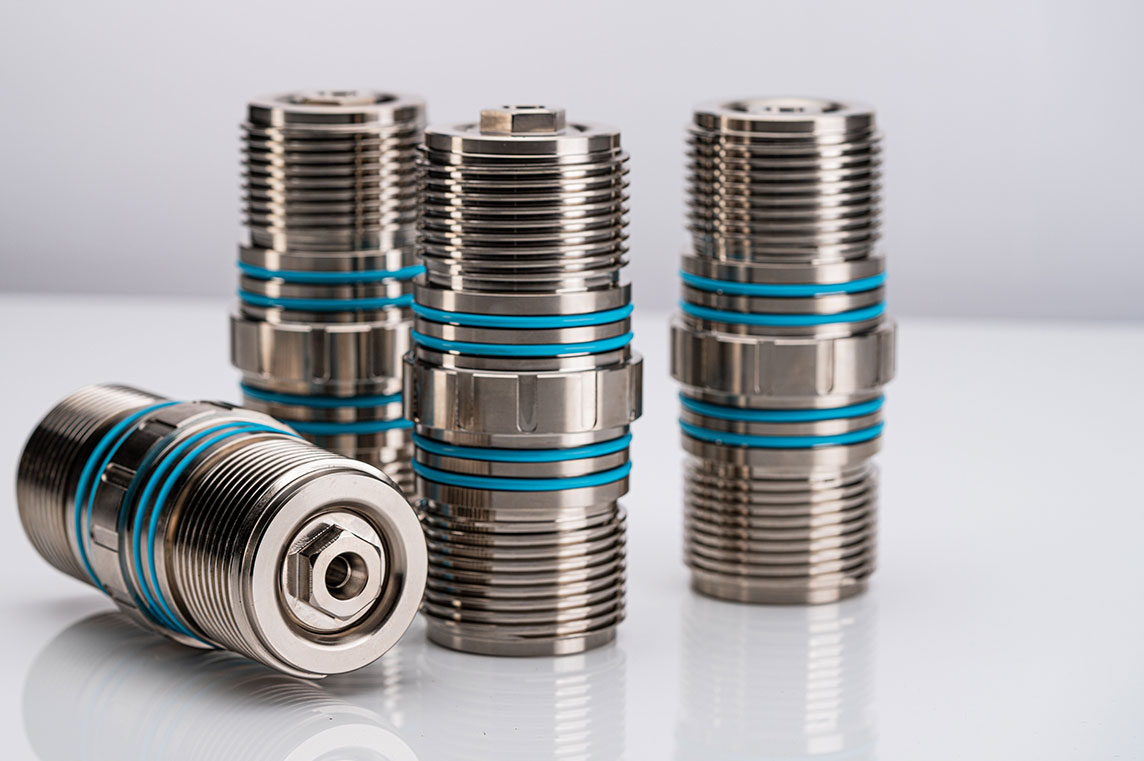

Wellmatics offers robust material, quality machined, inspected, and built for the rigors of the job. Easy to assemble, easier to use, and simple to maintain. We have eliminated the abundance of auxiliary equipment by having one tandem arming sub for both oriented and non-oriented perforating applications. The patented Wellmatics Wedge for orienting the charge tube – provides a quick and seamless way to utilize the banded carrier for oriented perforating without additional hardware needs. Firing Combo sub for the PHIRE Igniter Stick available for the standard Baker, Compact, and Shorty setting tools as well as crossovers to get back to disposable tools.

Less is More

  • Top Sub
  • Gun Sub
  • Plug Shoot Assembly Sub
  • Pump Down Ring Box Sub
  • Pump Down Ring Bull Nose Redress Kit


Wellmatics Difference:

  • Wellmatics Proprietary Coating to Eliminate Rust and Protect Electrical Contact Surfaces
  • Pressure Rated to 20k PSI
  • Disposable Electrical Contacts
  • Gun Subs without Ports to Maintain
  • Bulkhead for Unparalleled Grounding and Multi-Use on Gun Subs and Top Subs
  • ¾” Shoulder to Shoulder Between Gun Bodies
  • One Piece Plug Shoot Adapter


Hardware


GUN ASM O.D.
Bull Plug
Centralizer Sub
Centralizer Ring
Pump Down Ring Box Sub
Pump Down Ring Bull Nose
Combo Firing Sub
GUN ASM O.D. 2"
Bull Plug WP209-0008
Centralizer Sub WS200-0005
Centralizer Ring N/A-BOX/PIN DESIGN
Pump Down Ring Box SubWP209-0011
Pump Down Ring Bull NoseWP001-0017
Combo Firing SubBaker, Multi Stage
GUN ASM O.D. 2.5"
Bull Plug WP259-0010
Centralizer Sub WS001-0022
Centralizer Ring WP259-0009
Pump Down Ring Box SubWP001-0025
Pump Down Ring Bull NoseWP001-0017
Combo Firing SubBaker, Shorty
GUN ASM O.D. 2.75"
Bull Plug WS275-0004
Centralizer Sub WS001-0022
Centralizer Ring WP278-0001
Pump Down Ring Box SubWP001-0025
Pump Down Ring Bull NoseWP001-0017
Combo Firing SubBaker, Shorty, Disposable
GUN ASM O.D. 3.125"
Bull Plug WS312-0008
Centralizer Sub WS001-0022
Centralizer Ring WP319-0009
Pump Down Ring Box SubWP001-0025
Pump Down Ring Bull NoseWP001-0017
Combo Firing SubBaker, Shorty, Compact, Disposable
GUN ASM O.D. 3.375"
Bull Plug WS337-0001
Centralizer Sub WS001-0022
Centralizer Ring WP340-0006
Pump Down Ring Box SubWWP001-0025
Pump Down Ring Bull NoseWP001-0017
Combo Firing SubBaker, Shorty, Compact, Disposable

Additional Hardware


GUN ASM O.D.
Bull Plug
Centralizer Sub
Centralizer Ring
Pump Down Ring Box Sub
Pump Down Ring Bull Nose
GUN ASM O.D. 2"
Bull Plug WP209-0014
Centralizer Sub --
Centralizer Ring --
Pump Down Ring Box Sub--
Pump Down Ring Bull Nose--
GUN ASM O.D. 2.5"
Bull Plug WP259-0013
Centralizer Sub --
Centralizer Ring --
Pump Down Ring Box Sub--
Pump Down Ring Bull Nose--
GUN ASM O.D. 2.75"
Bull Plug WP259-0013
Centralizer Sub --
Centralizer Ring --
Pump Down Ring Box Sub--
Pump Down Ring Bull Nose--
GUN ASM O.D. 3.125"
Bull Plug WP319-0034
Centralizer Sub WP319-0017
Centralizer Ring WP319-0016 (3.625" O.D.)
Pump Down Ring Box SubWP319-0035
Pump Down Ring Bull NoseWP319-0036
GUN ASM O.D. 3.375"
Bull Plug WP340-0018
Centralizer Sub WP340-0012
Centralizer Ring WP340-0013 (4.3" O.D.)
Pump Down Ring Box SubWP340-0019
Pump Down Ring Bull NoseWP340-0020
