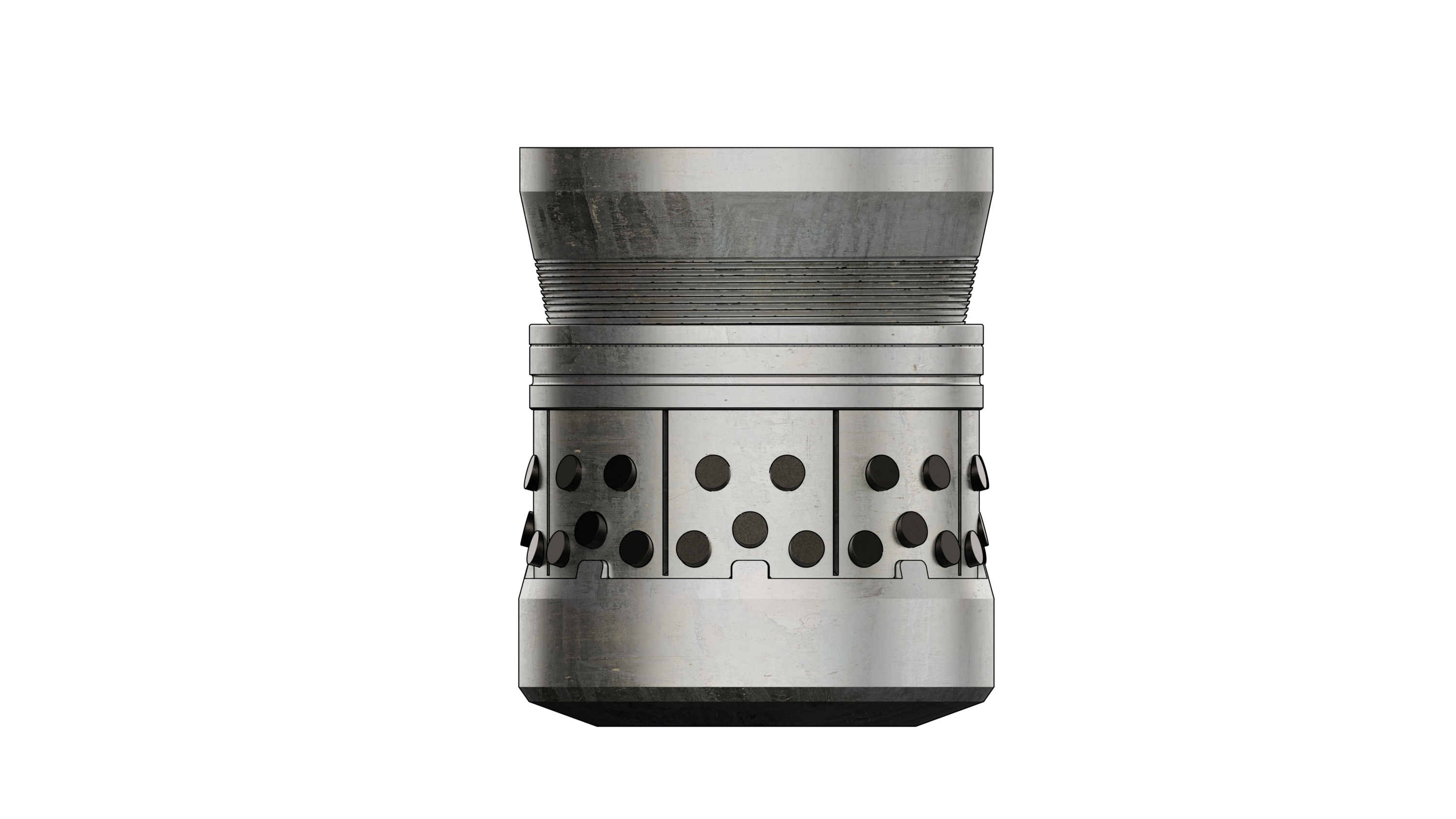

PHIRE Away

Dissolvable Frac Plug

The PHIRE AWAY Frac Plug is an ultrashort dissolvable frac plug that provides reliable zonal isolation during hydraulic fracturing. A compact all-metal design puts less material in the well, while the ductile metal sealing technology eliminates leak paths. Geometric sections are optimized for predictable dissolution, eliminating mill times.

PRODUCT HIGHLIGHTS

file PHIRE AWAY Data Sheet
  • Full metal seal to ensure no leaks
  • Large bore and short length reduces material
  • Interlocking slip design to resist backflow
  • Predictive Dissolution in both fresh and saltwater
  • Ball Drop or Ball in Place Operation
  • Coating available for high temperature/high salinity environments



Specifications:

  • Differential Pressure Rating - 10,000 PSI
  • Temperature Rating - 350 F
  • Set Length - 3.5 inches
  • Composed of 99.4% Dissolvable Material
Casing Size
OD
ID
Set Length
Pressure Rating
Temp Rating
Casing Size4.5" 11.6-13.5#
OD3.64"
ID1.1"
Set Length3.5"
Pressure Rating10,000 PSI
Temp Rating350°F
Casing Size5.0" 18-21.4#
OD3.85"
ID1.2"
Set Length3.5"
Pressure Rating10,000 PSI
Temp Rating350°F
Casing Size5.50" 20-23#
OD4.34"
ID1.38"
Set Length3.5"
Pressure Rating10,000 PSI
Temp Rating350°F
Casing Size6.0" 22.3-24.5#
OD4.85"
ID1.48"
Set Length4.3"
Pressure Rating10,000 PSI
Temp Rating350°F
